Repeater Module

Divi 4 module

The builder name is Repeater/Table/Tabs - Divi Machine. It accepts ACF Item children when you are repeating lightweight field rows, or switches to native ACF Pro repeater mode for full sub-field layouts.

Video walkthrough​

Overview​

Repeater module overview

Two high-level modes:

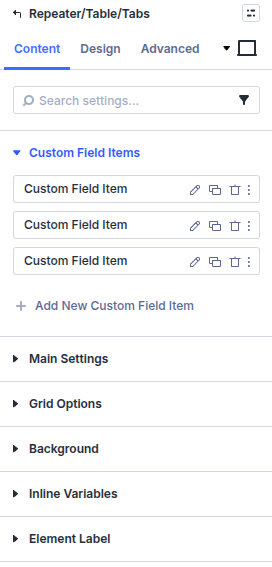

  1. ACF Items — Drop multiple ACF Item modules inside this parent; Machine repeats them like a mini loop layout.
  2. ACF Repeater Field Type (ACF Pro) — Bind to a repeater field and choose whether to render a Loop Layout, Table, Tabs, or Accordion presentation.

Main Options​

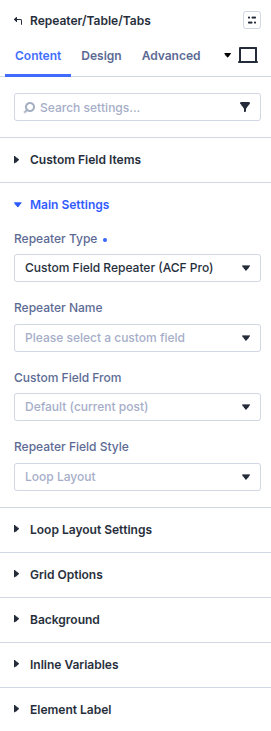

Repeater main options

Repeater Type

ACF Items vs ACF Repeater Field Type (ACF Pro). This toggle unlocks the rest of the fields in the group (grid columns, repeater name, field origin, etc.).

ACF Item Repeat Style

For ACF Items mode only. Grid lays children out in columns; List concatenates values with the separator defined next.

List Seperator

Text between values when ACF Item Repeat Style is List (defaults to ", ").

Space left of seperator

Fine horizontal spacing before each separator token in list mode.

Space right of seperator

Spacing after each separator token.

Repeater Name

Select the ACF repeater field when you are in ACF Repeater Field Type mode.

ACF Field From

Default (current post) is the common case. Switch to User Field or Current Taxonomy when the repeater lives on another object (for example user meta or term meta).

Repeater Field Style

Loop Layout defers to Repeater Loop Layout. Table, Tabs, and Accordion use structured presets (tables support “basic fields only” per the builder hint).

Make Links/Files as buttons

When rendering tables, converts URL and file subfields into button-styled anchors automatically.

Repeater Loop Layout

Choose the Divi Library layout executed for each repeater row when Repeater Field Style is Loop Layout.

Grid Columns / Tablet Grid Columns / Mobile Grid Columns

Responsive column counts for grid-style outputs (ACF Item grids or repeater layouts that honor the grid wrapper).

Table, loop, and tabs groups​

Repeater table and tabs settings

Use Table Settings for header labels, zebra striping, and column-specific tweaks. Loop Layout Settings control spacing around injected library sections. Tabs/Accordion Settings cover titles, open/closed colors, and iconography for those repeater styles.

Design fonts include Item, Table Header, Table Body, Table Body Odd, Tab, Accordion Title, Accordion Closed Title, plus the shared Button group for CTA styling.
